How to Solve Powder Coating Conveyor System Failure?

Your powder coating conveyor system is the essential lifeline of your operation. When it runs smoothly, parts flow efficiently through the powder coating booth for consistent, high-quality finishes. But a sudden conveyor failure – especially a complete stop – brings your entire production line to a costly halt, impacting deadlines, quality, and your bottom line. This guide provides direct, actionable steps to diagnose and fix the most common powder coating conveyor problems, starting with the critical issue of a stopped chain during spraying. Learn how to quickly troubleshoot, implement solutions, and get your line moving again – minimizing downtime and maximizing productivity.

Quick Reference: Powder Coating Conveyor System Types

Understanding your conveyor type is critical for efficient troubleshooting. Below are the three most common systems used in powder coating line:

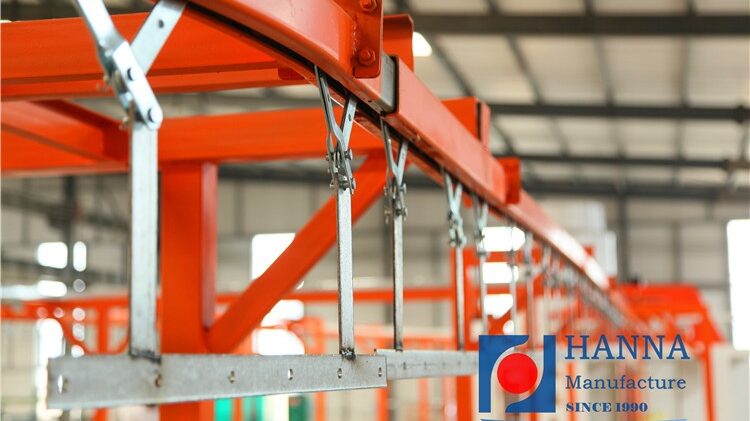

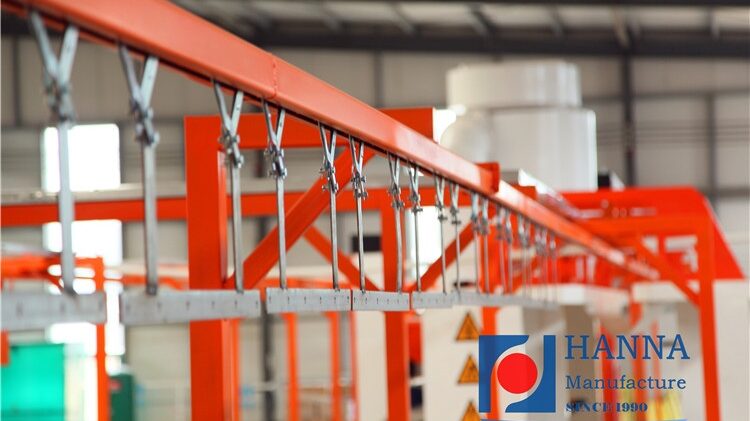

Automatic Conveyor System

Automatic systems use a continuous chain-driven mechanism (typically overhead monorail or inverted designs) to move parts at fixed speeds. Trolleys are permanently fixed to the chain, ensuring consistent flow through pretreatment, spraying, and curing stages. Ideal for high-volume production, these systems minimize manual intervention but face common failures like chain stretch, sprocket wear, motor/VFD faults, or track misalignment.

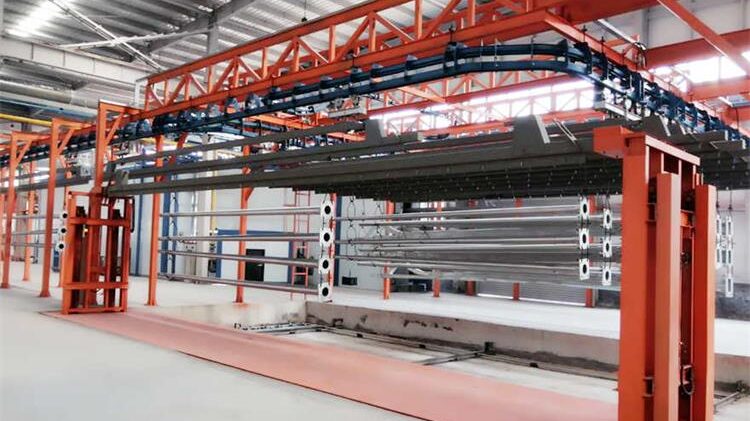

Power and Free Conveyor System

Power and Free systems separate propulsion from trolley movement: a powered chain runs parallel to a free track where trolleys carry parts. Trolleys engage/disengage via mechanical dogs, allowing accumulation, variable speed zones, and branching paths. This flexibility suits complex lines with buffering needs, but introduces failure risks like engagement mechanism jams, switch errors, chain slippage, or control system glitches.

Manual Conveyor System

Manual systems rely on operator effort to move trolleys along simple I-beam tracks or floor-based rollers. Often used for low-volume shops or oversized parts, they offer low-cost flexibility. Common issues stem from human factors: bent hooks from mishandling, trolley wheel/bearing wear, track debris causing jams, or inconsistent grounding due to poor trolley-track contact.

If Your Powder Coating Line Stopped Moving – Do This NOW!

When your automated powder coating conveyor suddenly halts, immediate action minimizes downtime. Systematically execute these checks in order:

1. Inspect the Conveyor Chain for Jams or Breaks

• Visually scan the entire chain path – especially near sprockets, curves, and load points.
• Check for jams: Look for stuck parts, tangled hangers, or debris (e.g., fallen tools, accumulated powder) physically blocking movement. Clear obstructions immediately if safe.
• Check for breaks/disconnections: Examine chain links for fractures, snapped pins, or detached master links. Pay attention to splice points and high-stress areas.
• Assess tension: Sagging chains indicate under-tension; excessive tightness suggests misalignment or binding.

2. Verify Motor Operation & Overload Status

• Is the motor running? Listen carefully near the motor housing. Place your hand safely near it (without touching moving parts) – do you feel vibration indicating it’s trying to run? No sound or vibration means the motor isn’t receiving power or command, or has failed.
• If running, is it running normally? Listen for unusual noises – grinding, screeching, or loud humming can indicate bearing failure, misalignment, or overload. Check if the motor casing is excessively hot (caution: it may be normally warm).
• Check the Overload Protector: Locate the motor’s thermal overload relay or circuit breaker (often a red button on the motor starter or a breaker near the drive). Has it tripped?

3. Examine the Variable Frequency Drive:

• Is the VFD powered on? Check for indicator lights or an active display screen. No lights usually mean no power – check main breakers/fuses supplying the VFD.
• Is the display showing an error code? This is critical! VFDs flash specific error codes for faults. Consult your VFD manual immediately to decode the error – it points directly to the problem.
• Is it receiving a start command? Verify that the control system is actually sending a “Run” signal to the VFD. Check wiring status lights or input indicators on the VFD.
• Have the parameters been changed? Accidentally altered speed settings, acceleration/deceleration times, or critical motor parameters can prevent startup or cause trips. If accessible and you are trained, carefully check key settings against known good values or the manual. Avoid changing parameters unless you are certain.

Other Common Powder Coating Conveyor Failures

Beyond sudden stoppages, powder coating conveyor systems face recurring mechanical and operational issues. Chain slippage or jerky movement often stems from worn sprockets, excessive chain stretch, or improper tension. Solutions include replacing damaged sprockets, adjusting tension to manufacturer specs, and ensuring regular lubrication with high-temperature grease. Misaligned tracks or worn trolley wheels frequently cause erratic hanger movement, part sway, or grinding noises. Realign tracks using laser tools, replace deformed wheels/bushings, and clear debris from rails monthly.

Hanger-related failures severely impact quality. Bent hooks or poor grounding (due to paint buildup) cause uneven coating or Farriday Cage effects. Straighten/replace hooks immediately and implement strict hanger cleaning protocols. Trolley wheel seizure from powder ingress triggers drag and motor overload. Seal bearings where possible and clean wheels weekly. For chronic electrical issues like sensor faults, verify alignment and replace lens covers clouded by overspray.
