How to Choose the Right Curing Oven for My Powder Coating Line?

The curing oven acts as the heart of your powder coating line. While the powder coating booth gets most of the attention, the oven determines the final quality of your product. A high-quality oven ensures that the powder melts, flows, and bonds correctly to the metal surface. Choosing the wrong heating system often leads to brittle finishes or inconsistent colors. These mistakes waste time and increase your energy bills. We will focus on heat technology, sizing, and fuel choices to help you make a practical decision.

Matching Technology to Your Powder Coating Line

Selecting the right oven depends on how you move parts through your facility. Each design handles heat and workflow differently.

Camel Back Curing Oven

The Camel Back oven is the most efficient choice for a high-volume coating line. Its elevated design creates a natural “air seal” at both ends. Since heat rises, the hot air stays trapped in the raised center section while parts enter and exit through openings below. This layout prevents heat loss and keeps your workshop cool. It is ideal for automated systems where saving energy is a top priority.

Tunnel Powder Coating Oven

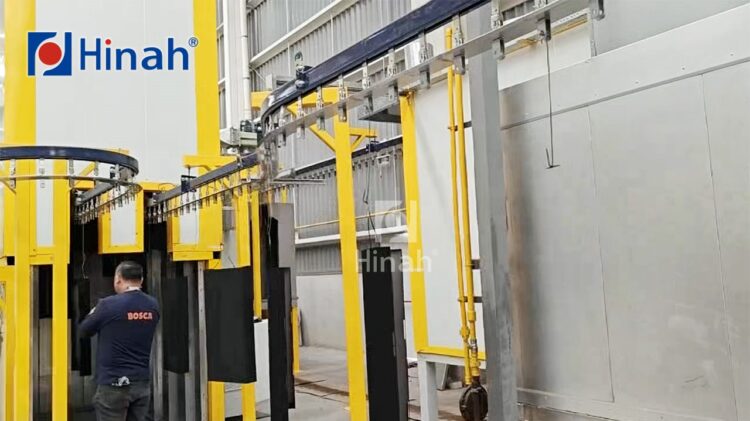

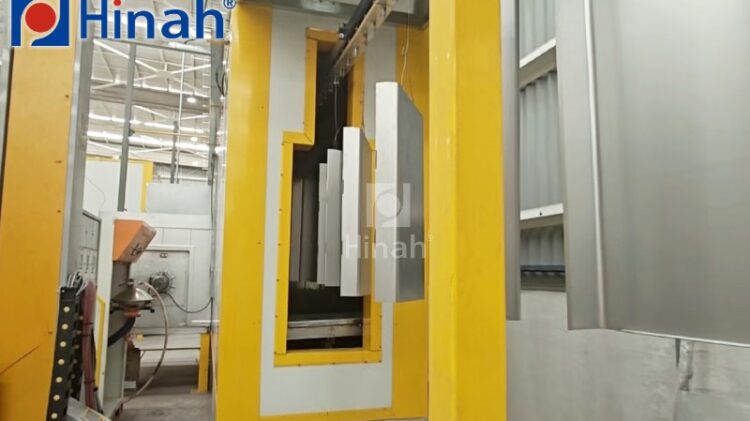

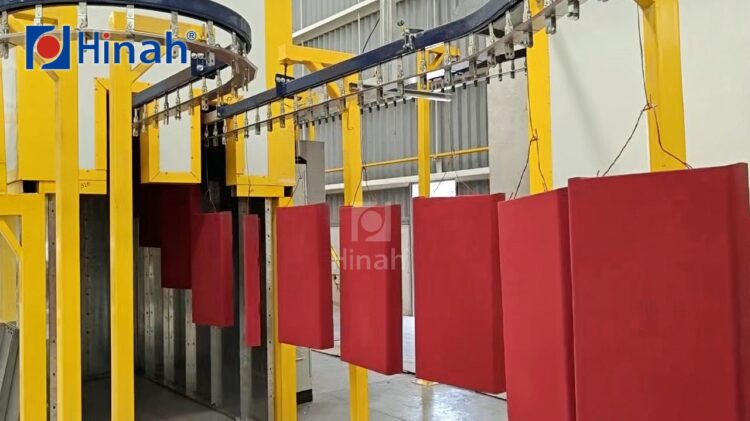

A Tunnel oven is built for straight-line production. Parts travel continuously through a long heated chamber on an overhead conveyor. This design is common in a standard powder coating line that handles long profiles or large quantities of similar items. It offers consistent heating zones and allows for a smooth, non-stop workflow from the spray booth to the cooling area.

Batch Powder Curing Oven

For shops with limited space or diverse part sizes, a Batch oven is the most flexible option. You hang parts on a rack and push them into the oven for a set time. This is the best fit for a manual powder coating system where you change colors or curing times frequently. It is easy to operate and requires a lower initial investment compared to continuous systems.

Determining the Ideal Oven Size for Your Coating Line Throughput

The size of your oven dictates the maximum speed of your entire production. If the oven is too small, it creates a bottleneck that slows down your spray booth. If it is too large, you waste money on heating empty space.

Calculating Clearance and Dwell Time

You must measure your largest workpiece and add at least 15 to 20 centimeters of clearance on all sides. This extra space allows for proper airflow around the metal. In a continuous powder coating line, you also need to factor in “dwell time.” This is the total minutes a part must stay inside the heated zone to reach full cure. If your conveyor moves fast, your oven must be long enough to accommodate that speed without under-curing the parts.

Matching Dimensions to Your Automated Powder Coating Line

For an automated powder coating line, the oven footprint must align with your conveyor layout. We often design U-turn or multi-pass interior tracks to save floor space while maintaining a long heating path. This ensures that even in a compact factory, your parts receive the exact heat cycle they need.

Which Energy Best Fits Your Powder Coating Line?

Your choice of fuel is a long-term financial decision. The right energy source keeps your operating costs predictable and your finish quality high.

Operational Cost Analysis

Natural gas and LPG are the most popular choices for a large-scale powder coating line. Gas burners heat up quickly and usually cost less to run in most industrial regions. However, electric ovens are gaining popularity for smaller setups. While electricity can be more expensive per hour, electric ovens are simpler to maintain and do not require complex exhaust ducting for combustion gases.

Temperature Precision and Sustainability

Modern electric systems offer incredible precision for a specialized powder coating line. They allow you to control the temperature within a few degrees, which is vital for sensitive colors or thin-walled parts. Many companies are also switching to electric heating to meet new environmental standards. Choosing a clean energy source can improve your brand image and ensure your facility stays compliant with future local regulations.

Conclusion

Buying a curing oven is a major step in building a reliable powder coating line. You must balance the type of oven with your specific part sizes and your local utility costs. A well-chosen oven reduces waste, saves energy, and ensures your customers receive a durable product every time. Partnering with an experienced powder coating line manufacturer helps you customize these variables to fit your exact workshop goals.
